NIVEAU Sauna kit

The Niveau sauna kit provides consumers with a relaxing sauna built to outlast it’s competition. Notable features include an expansive frontal window and panel construction system composed of three repairable layers.

Materials Shou sugi ban cedar exterior, White spruce interior, Hempwool insulation, stainless steel roofing, tempered glass windows

Dimensions 6.5’x7’x8.25’

1/12 Scale Physical Model - Balsa wood, aluminum foil, and acrylic

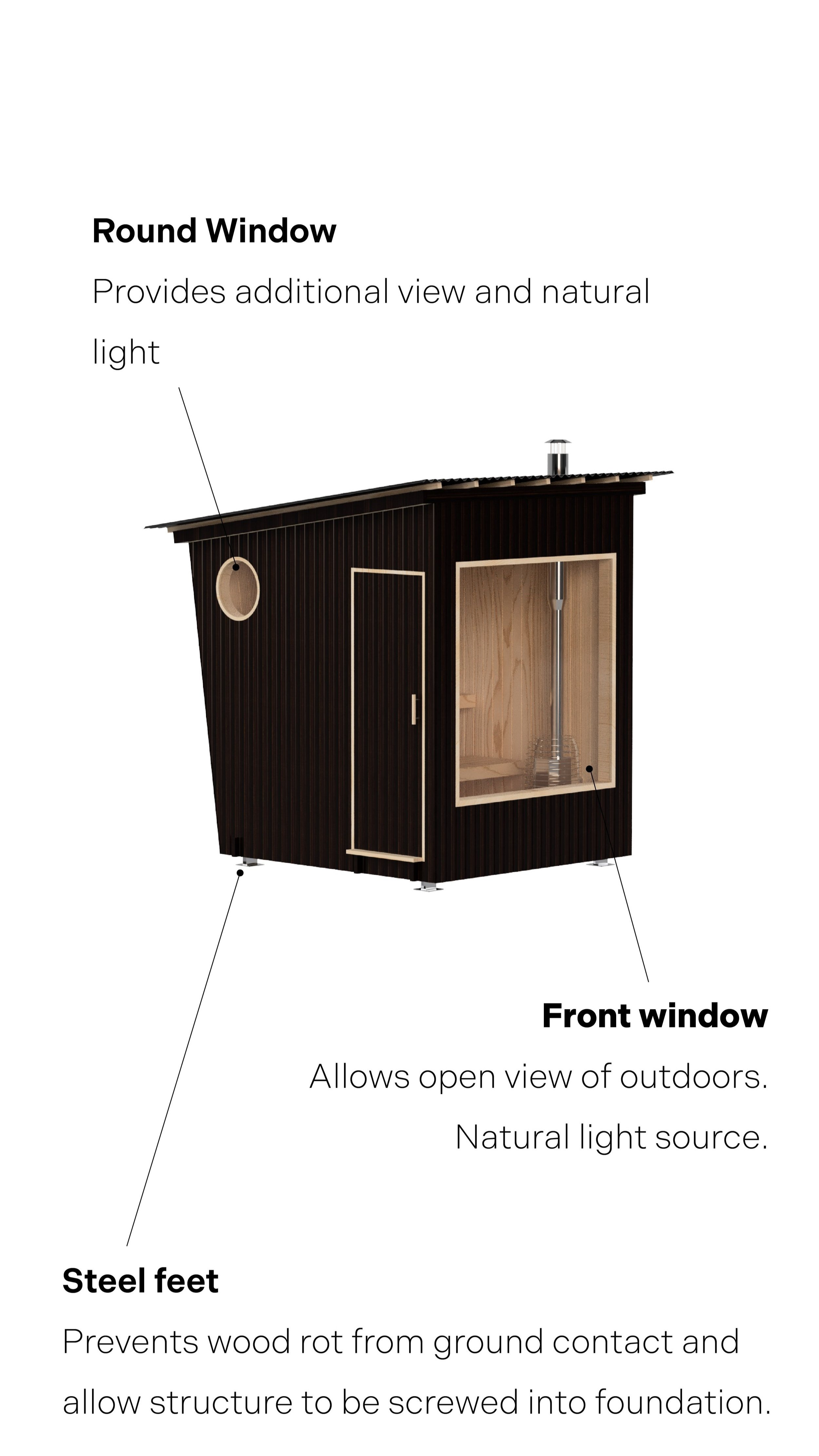

FRONT DETAIL VIEW

REAR DETAIL VIEW

WALL SECTION P1

WALL SECTION P2

  • 1

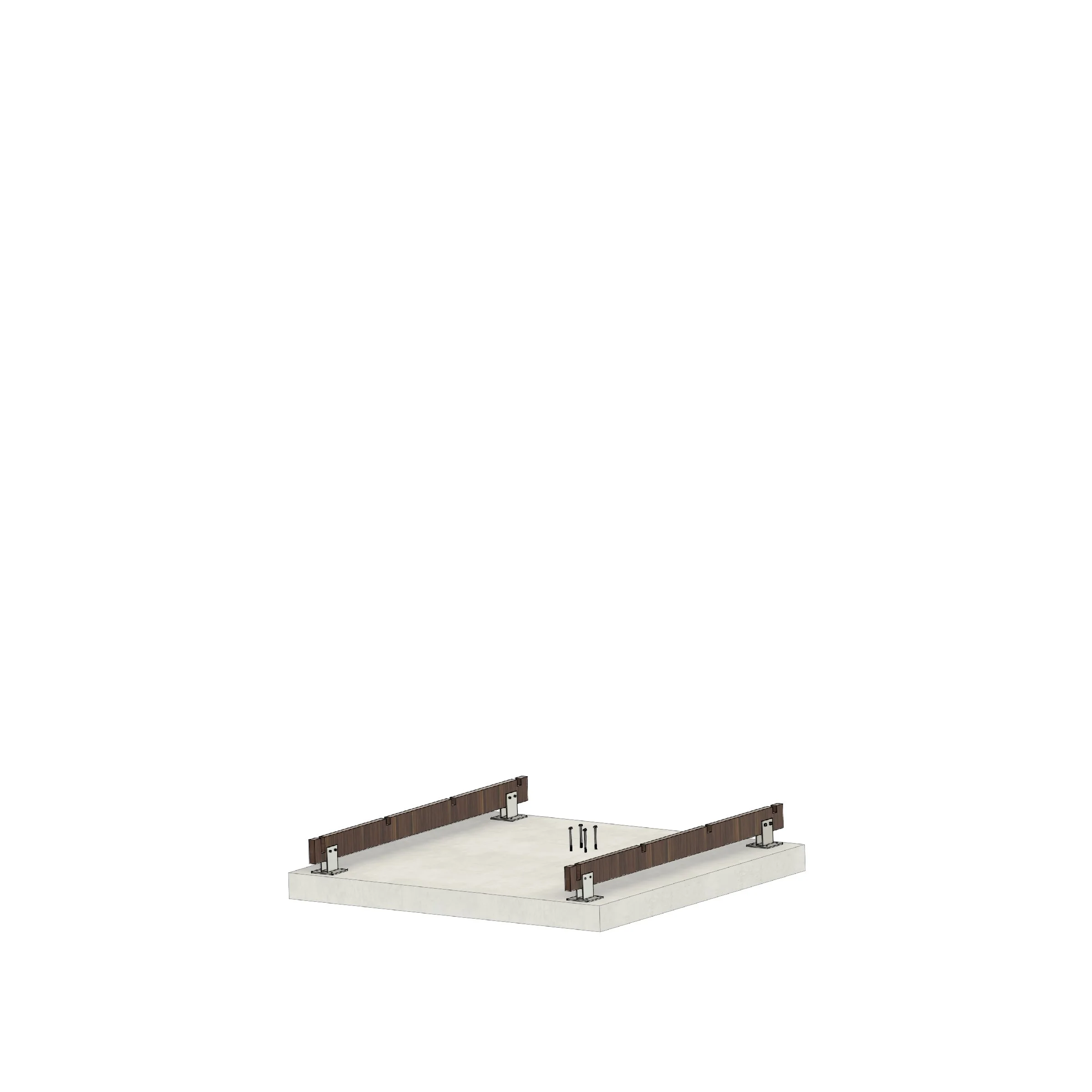

    Screw base units into a level foundation

    (6.5’x6.5’) or larger

  • 2

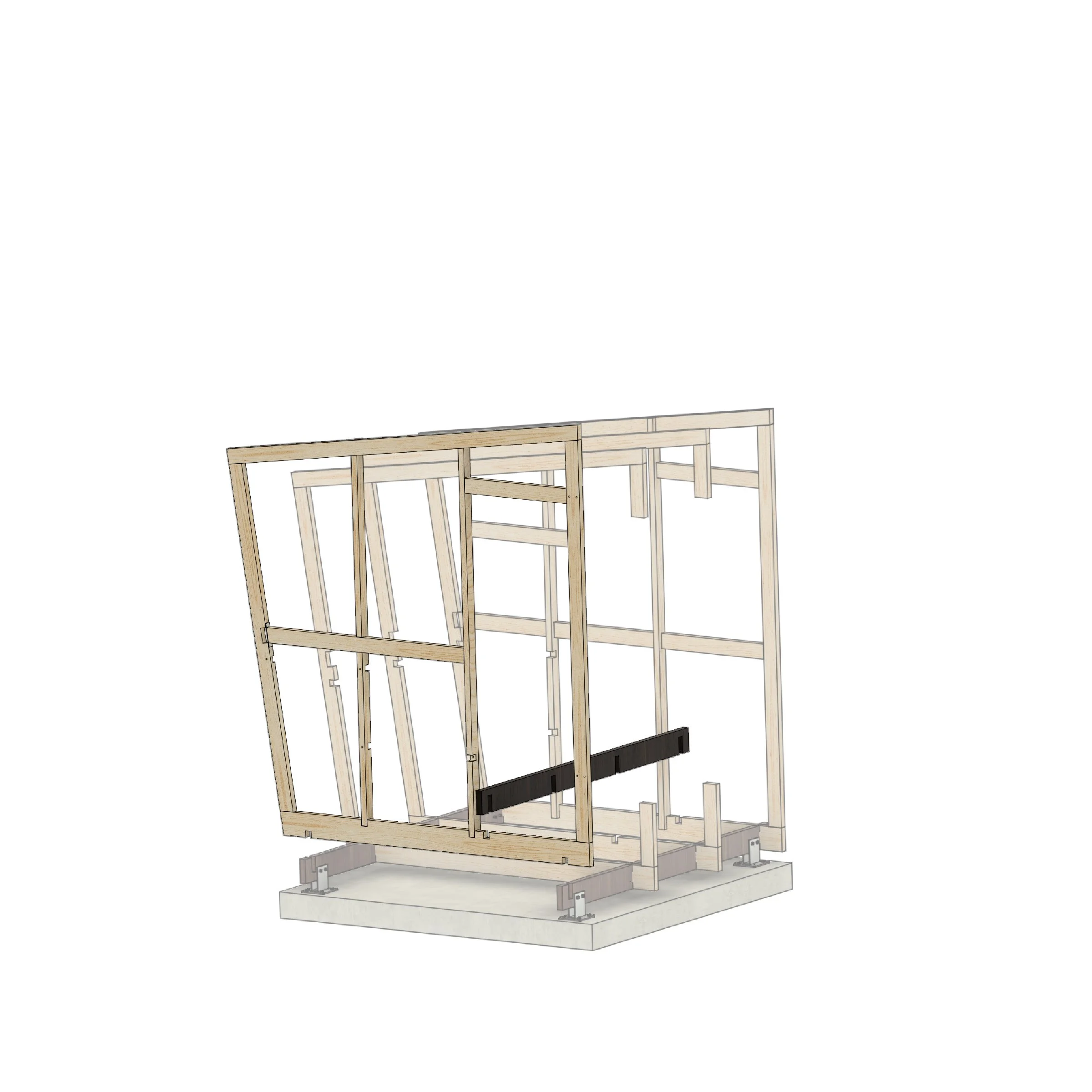

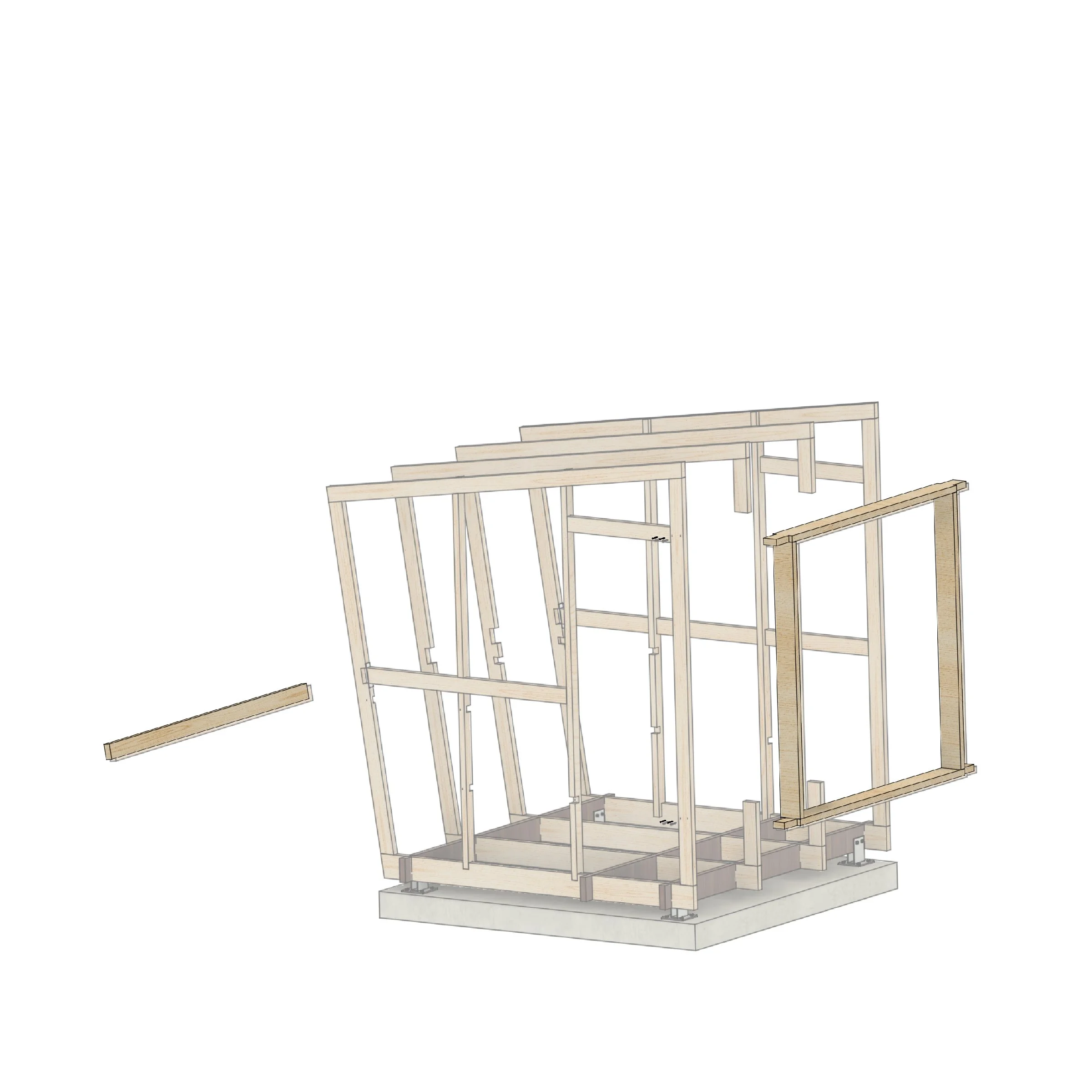

    Slot modular Frame into base, cap off with third base beam

  • 3

    Screw the window frame and back panel into place to secure frame

  • 4

    Screw seating supports into frame

  • 5

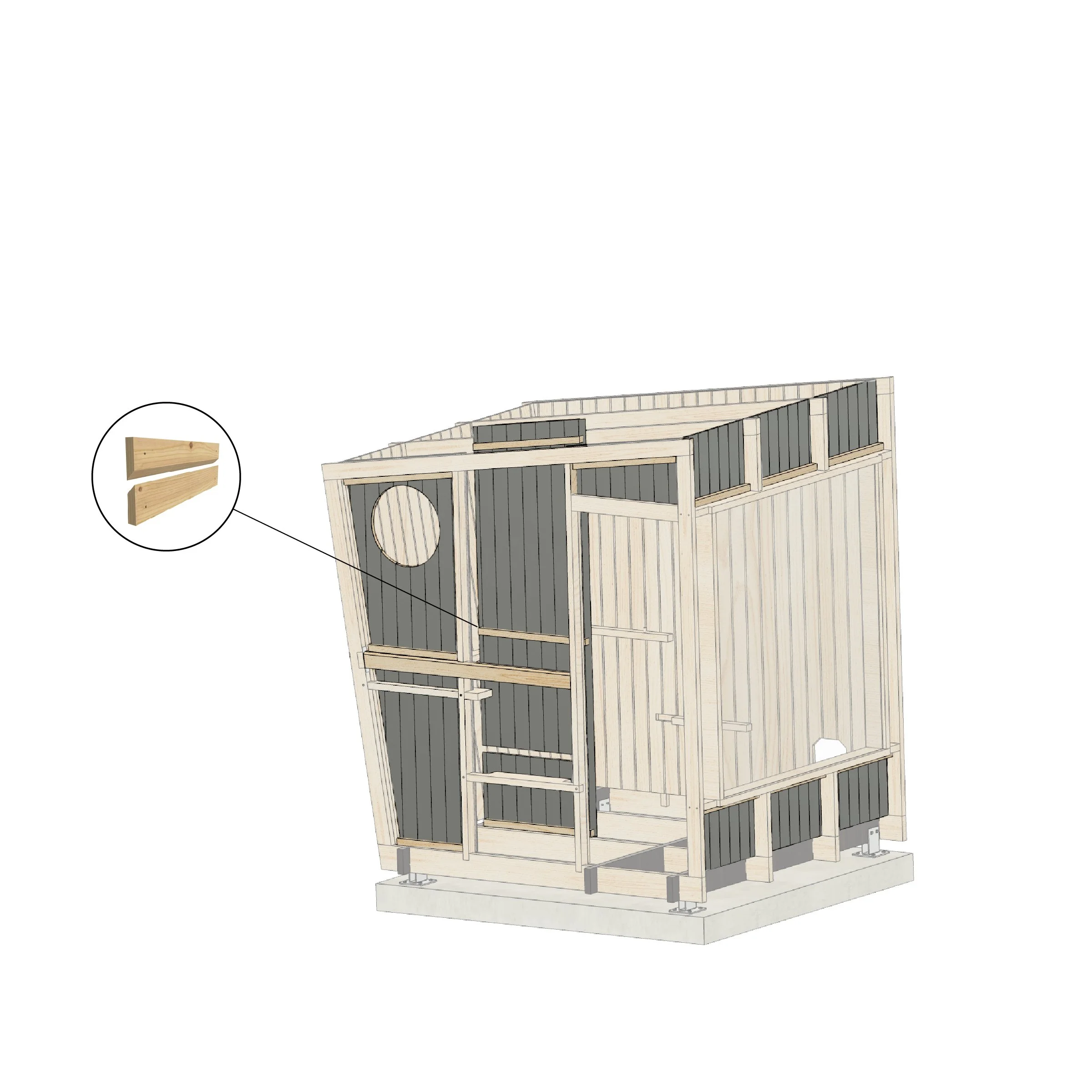

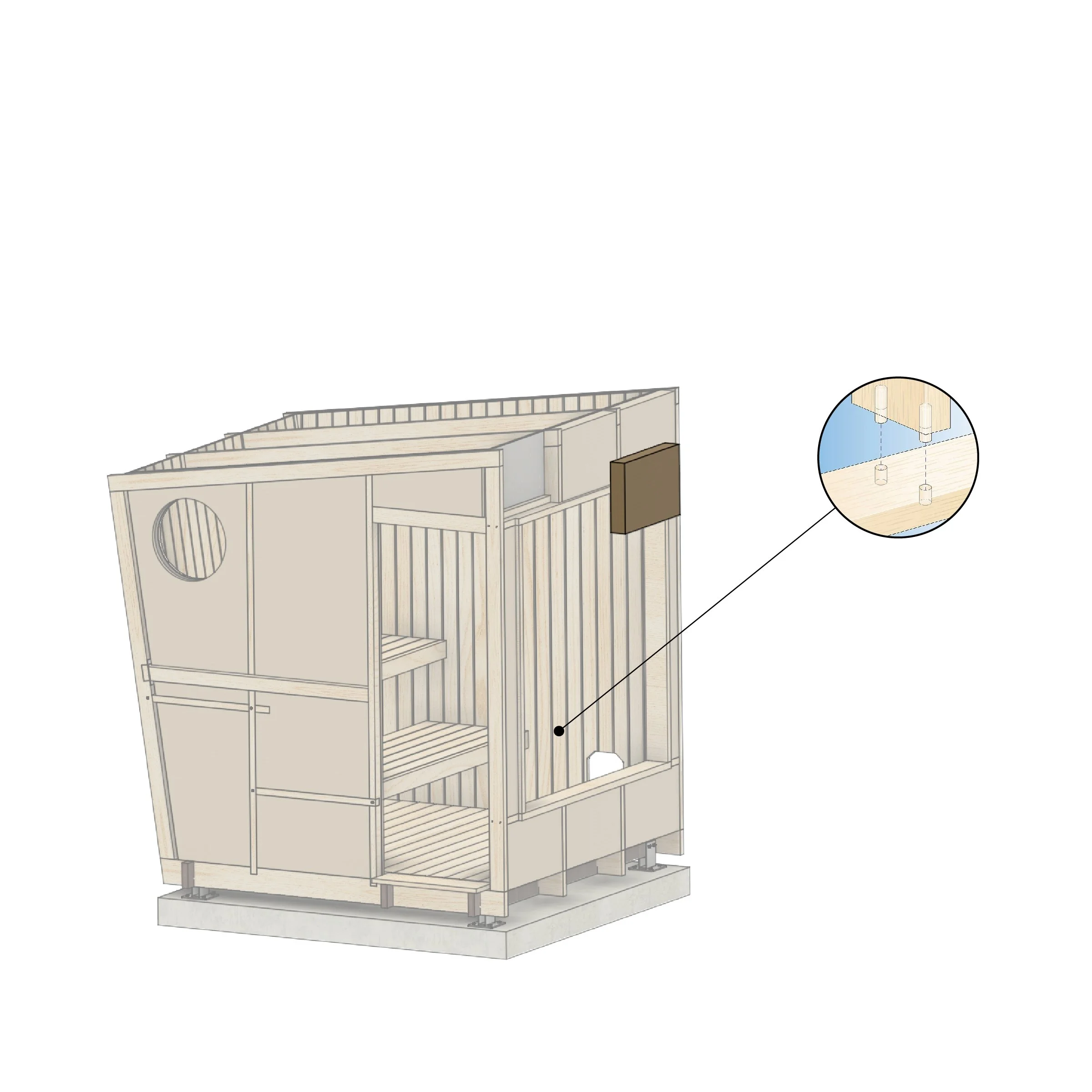

    Slot Interior panels onto frame using french cleat

  • 6

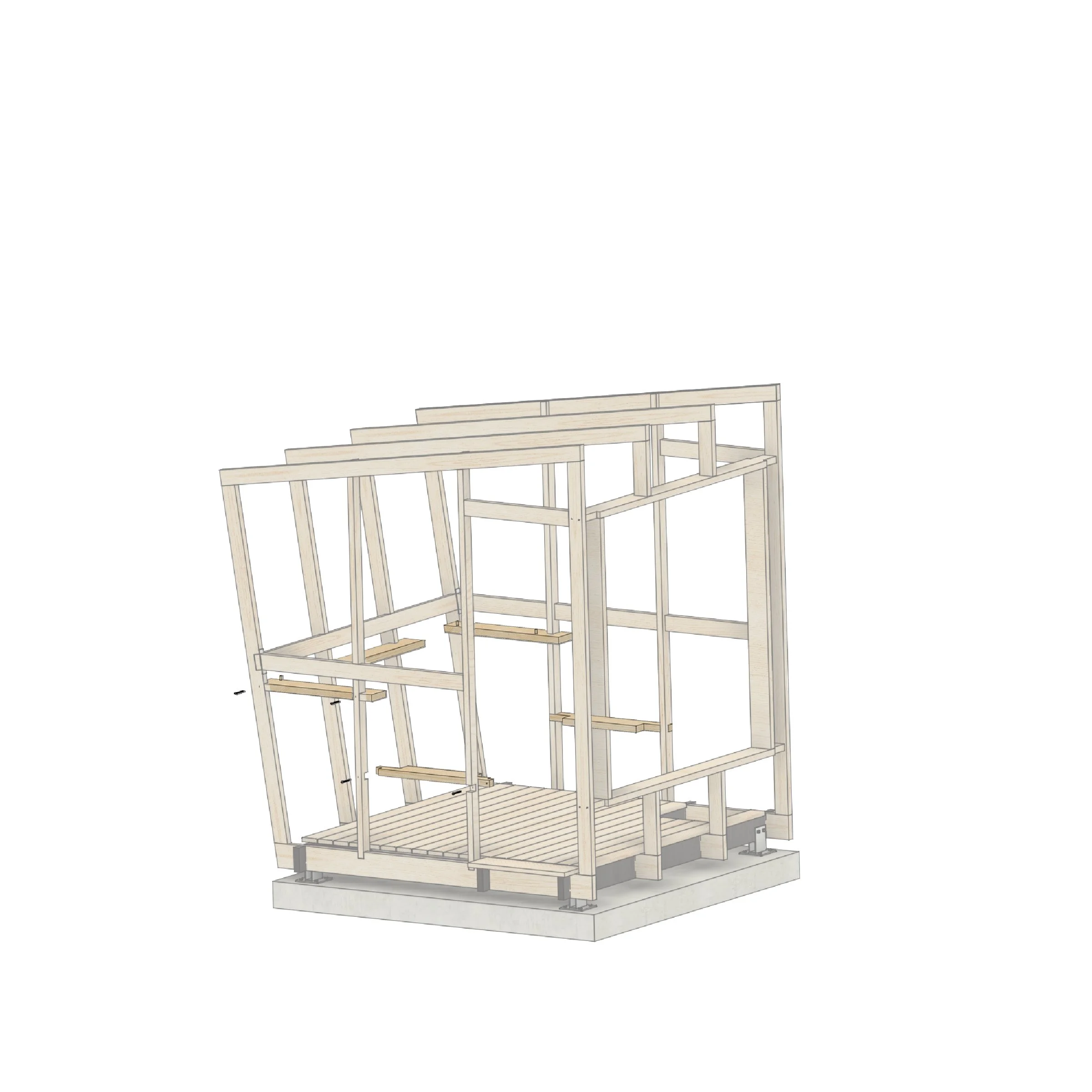

    Place flooring panels onto base frame

  • 7

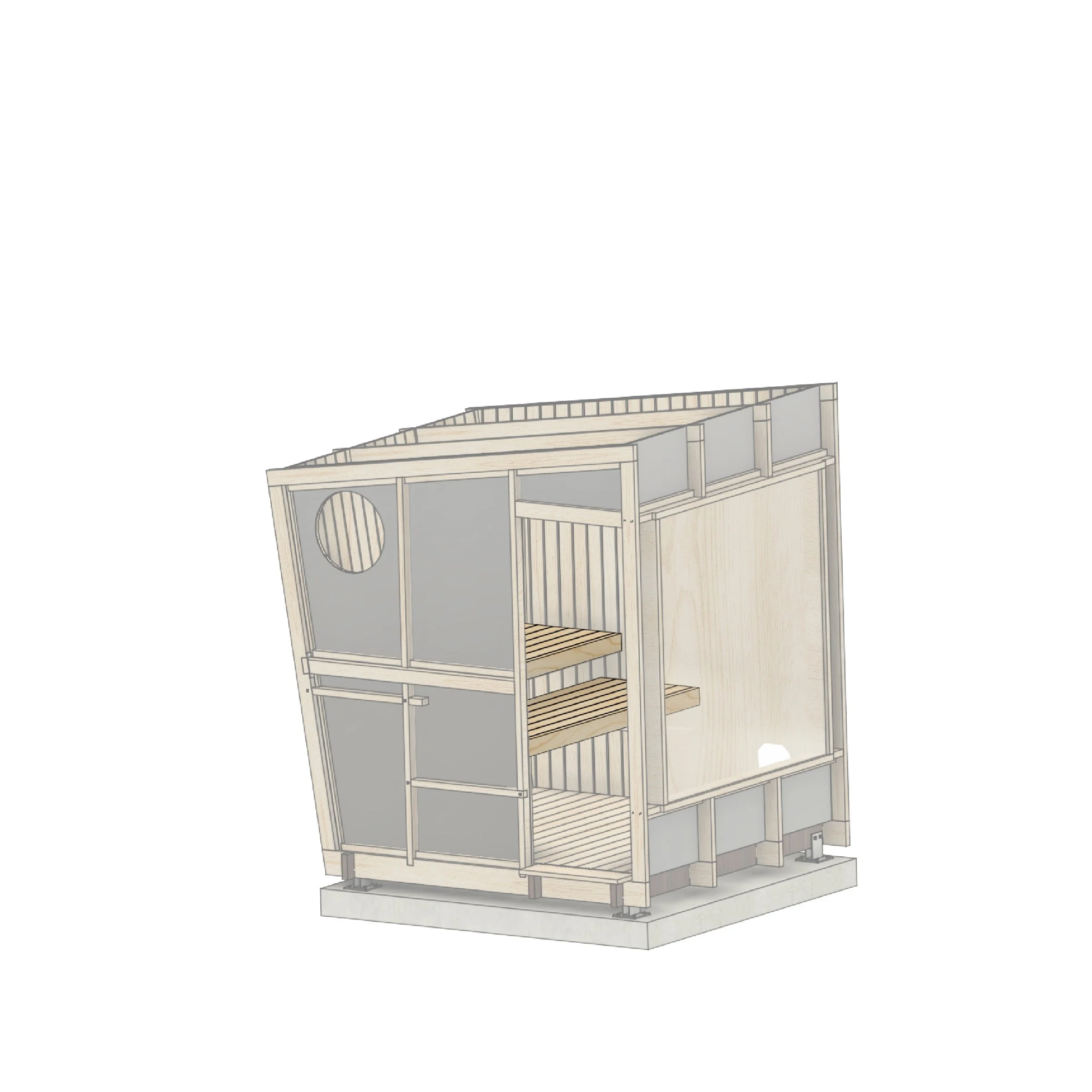

    Place Seating benches on supports

  • 8

    Place precut insulation blocks onto outer face of spruce cladding against vapor barrier

  • 9

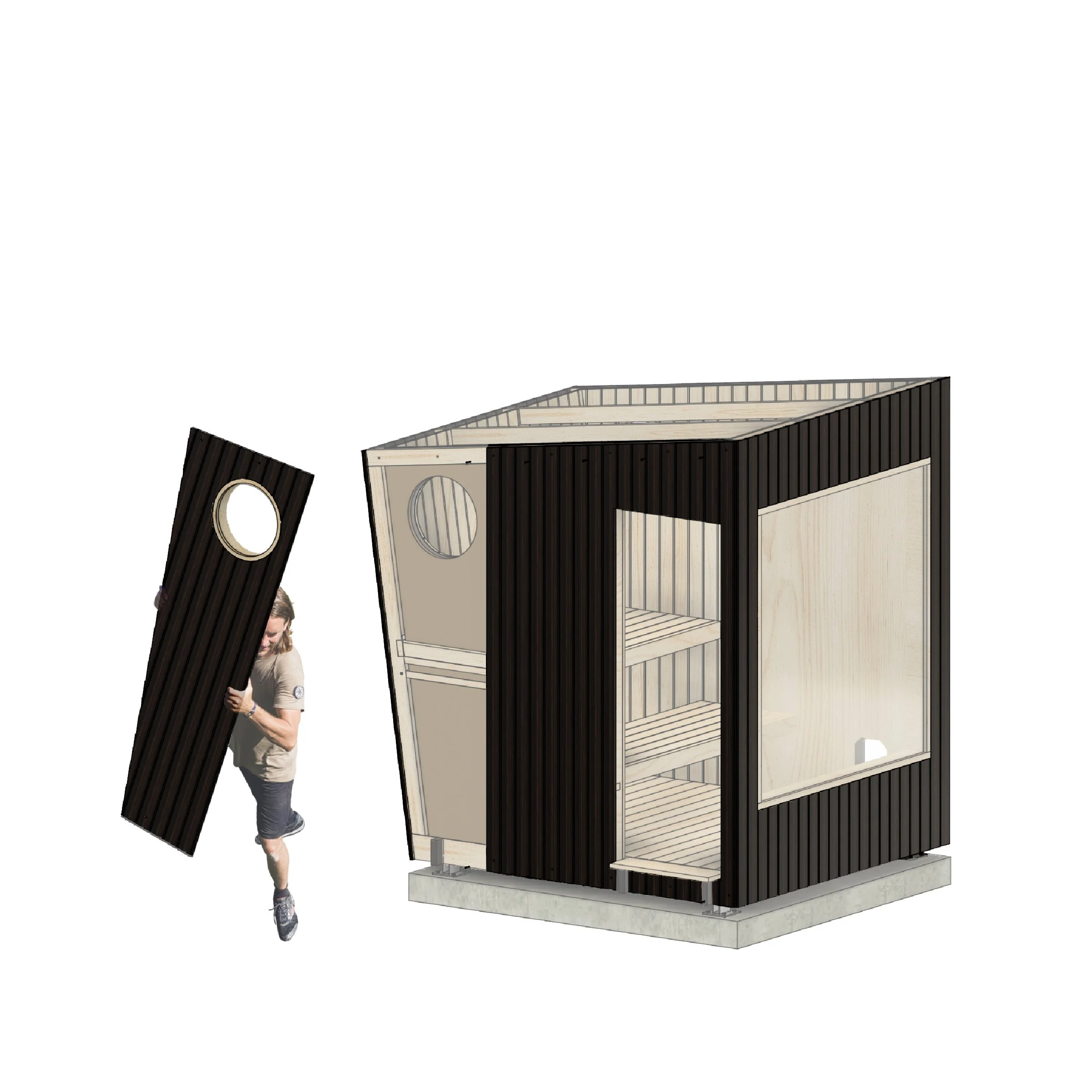

    Screw exterior panels onto cedar frame using corresponding pre drilled holes

  • 10

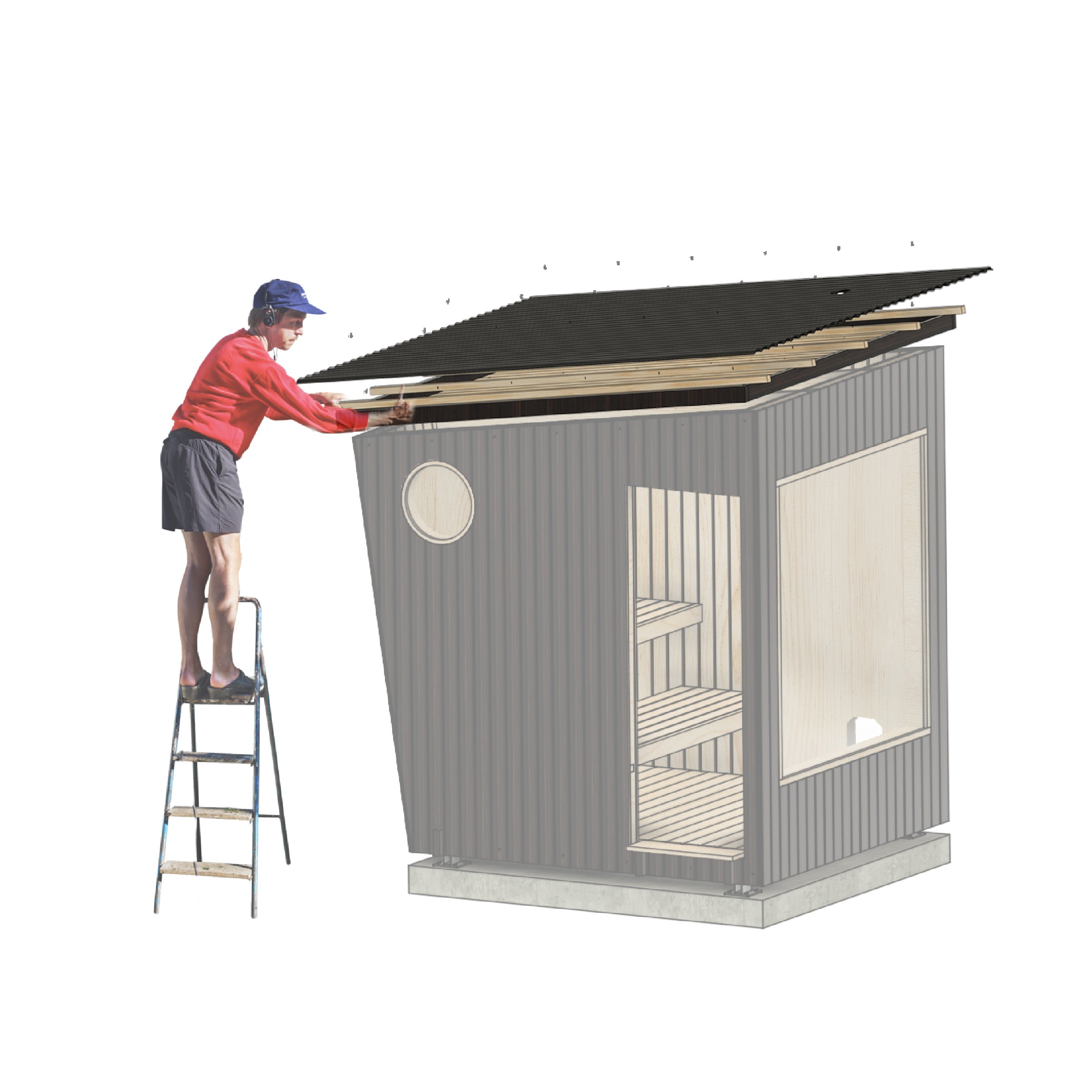

    Screw base of roof into frame using pre-drilled holes. Then screw steel roof onto roof base.

  • 11

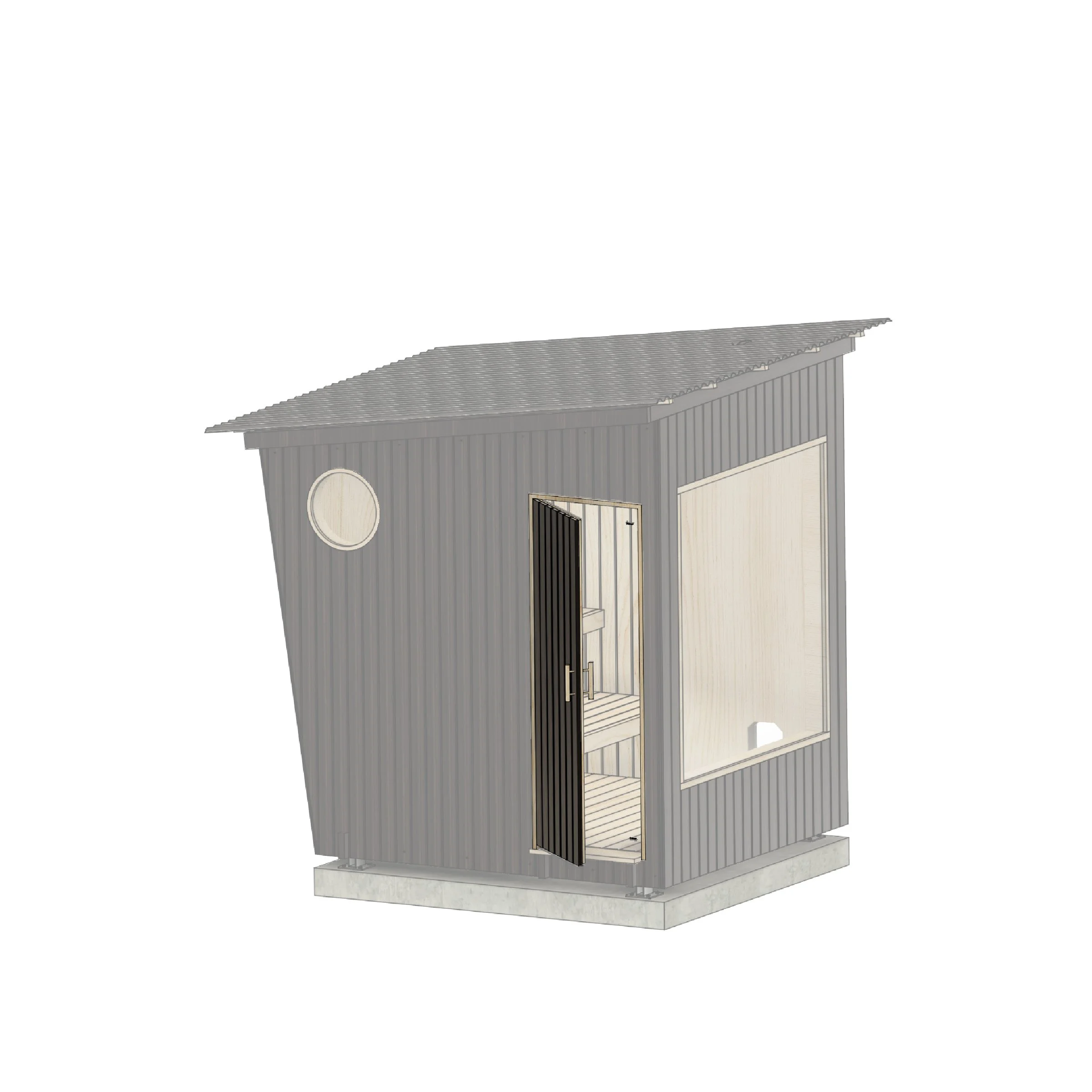

    Install the door by screwing the doorframe to suana frame using pre drilled holes

  • 12

    Insert the Huum hive heater into the gap across from the door.

Assembly - Swipe to view

Intuitive Construction - Allows users to better understand their sauna and how to inspect, assemble and disassemble various parts

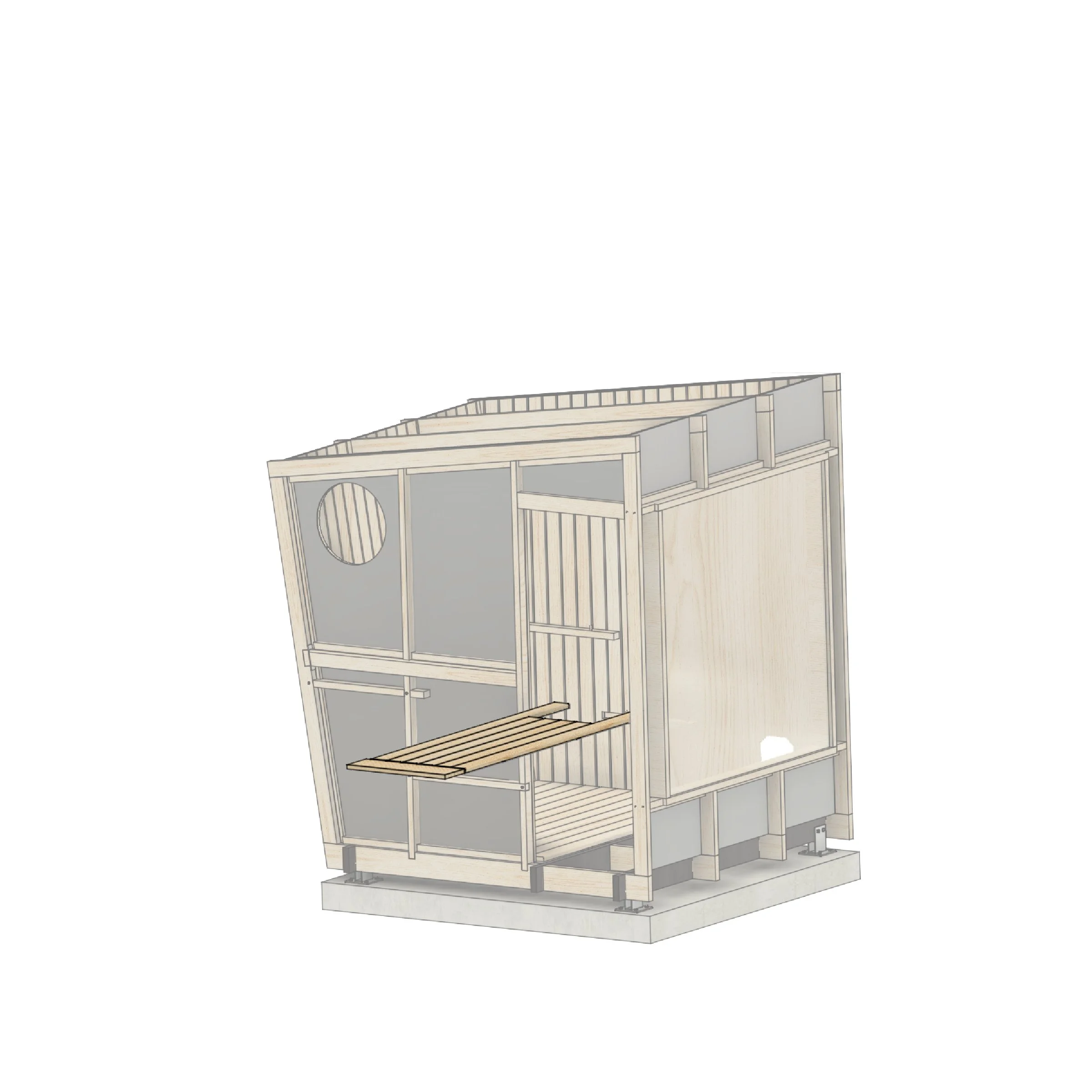

Cleaning - Seat benches and floor are easily removed without hardware to make cleaning the interior streamlined

Repairs - If damaged, neglected panels can be replaced as needed, both interior and exterior.

PANEL SYSTEM BENEFITS
